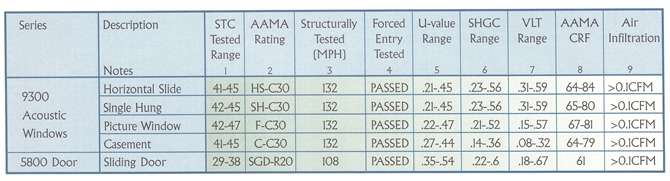

Acoustic Vinyl Windows & Doors Performance Matrix

NOTES:
1. Sound transmission class determined using ASTM-413.
2. Tested in accordance to AAMA/NWWDA 101/1.S.2-97 specification.
3. Static pressure and air velocity relationship expressed mathematically by the formula: P=.00256V²
4. Forced entry resistance tested in accordance to CAWM 301-90 for windows and CAWM 300-89 for doors.
5. U-value determined in accordance to NFRC 100.
6. Solar heat gain coefficient certified in accordance to NFRC-200.
7. Visible light transmission certified in accordance to NFRC-200.
8. CRF determined in accordance to AAMA 1503.
9. Tested in accordance to ASTM-E283.
